Description

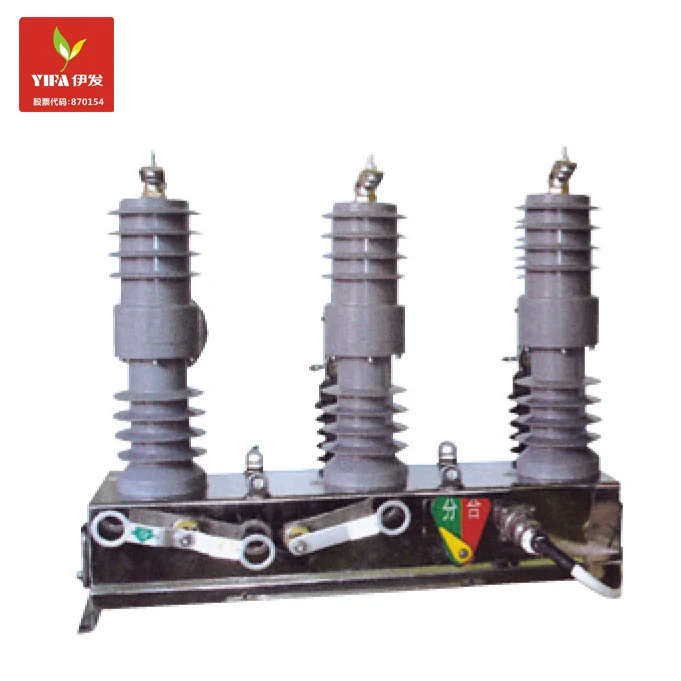

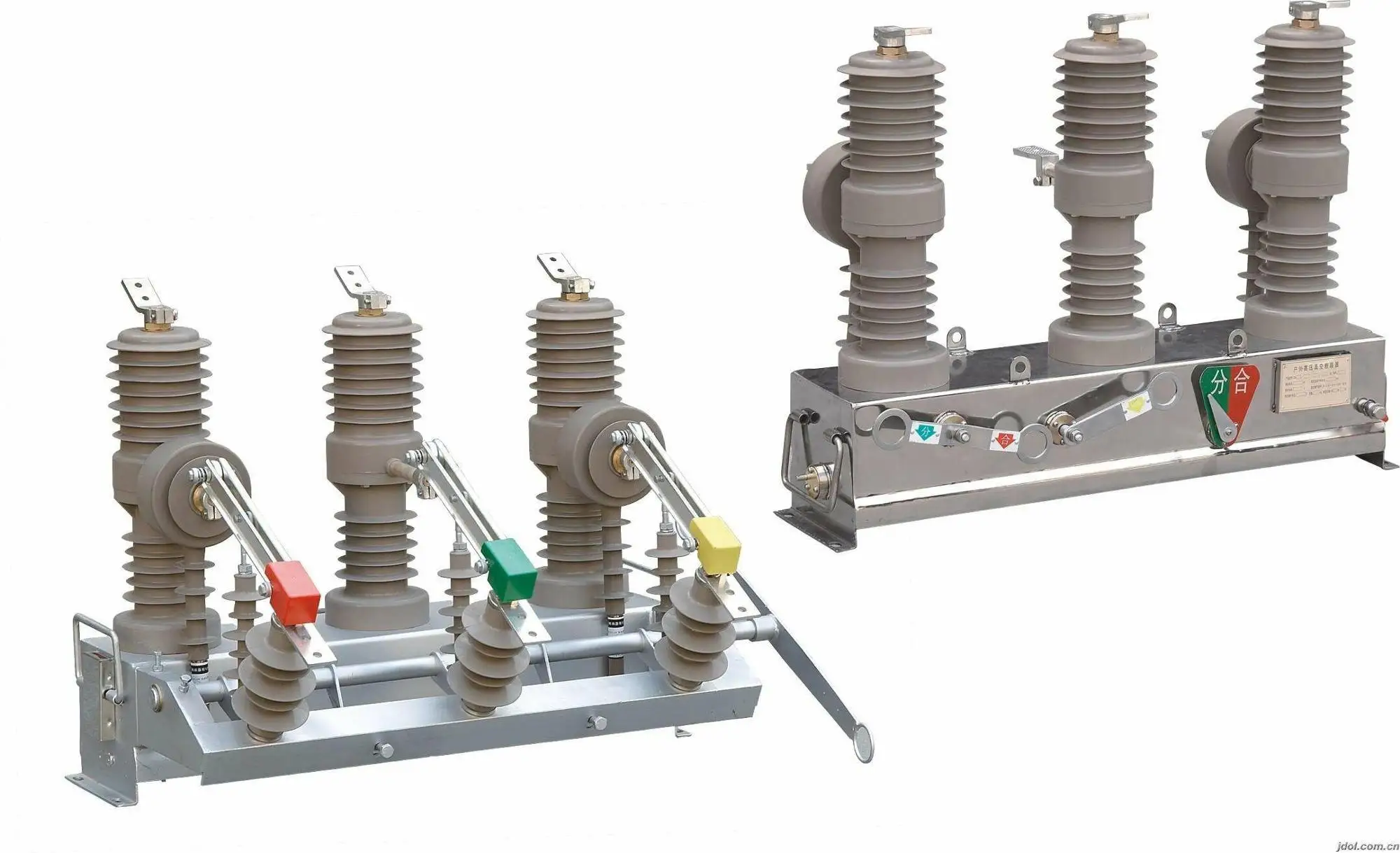

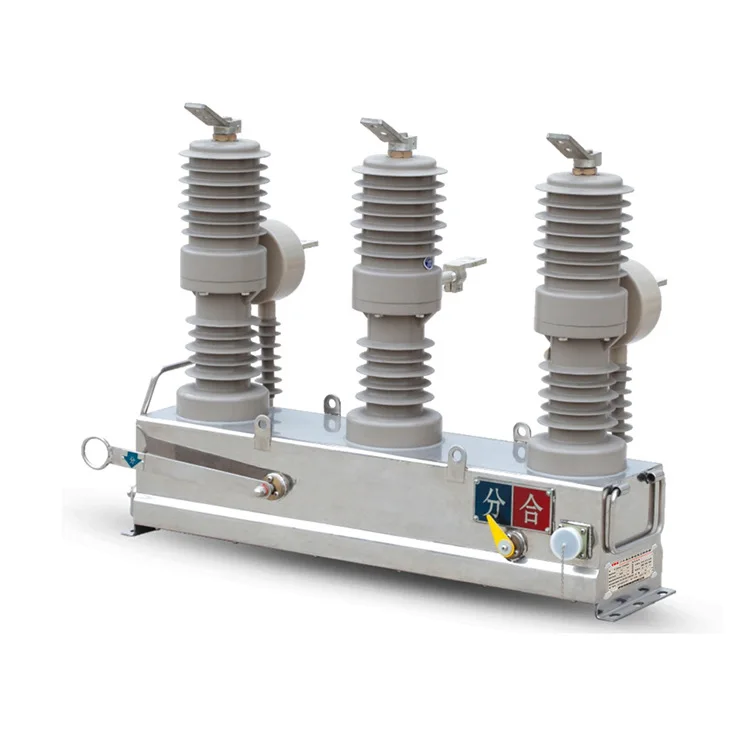

The ZW32-12 Outdoor High Voltage Vacuum Circuit Breaker is designed for use in three-phase AC power systems with a frequency of 50Hz and operating voltages between 10-12kV. This circuit breaker efficiently makes and breaks load currents while providing overload and short-circuit protection, ensuring safe control and measurement of electrical systems. It also supports remote control and monitoring, making it particularly suitable for distribution system control in transformer substations, industrial, mining enterprises, and rural power grids where frequent operation is required.
Specifications
| Attribute | Details |
|---|---|
| Place of Origin | Zhejiang, China |
| Brand Name | YIFA |
| Model Number | ZW32-12/630-20 |
| Type | Vacuum |
| Poles Number | 3 |
| Voltage | 10~12KV |
| Rated Current | 630/400/200A |
| Rated Frequency | 50Hz |
Additional Information
- Packaging Details: Carton
- Port: Ningbo Port
